Mardown BG (.mdbg) is an improvement of the existing Mardown language.
It provides nice features which make it possible to generate a fresh, correct and nice .tex document.
Like in markdown.
# H1
## H2
### H3
#### H4
##### H5
###### H6
For non enumerated sections :
#* H1
##* H2
###* H3
####* H4
#####* H5
######* H6
Translations :
In markdown :
**bold** or __bold__In mdbg :
*bold*
_underline_
In markdown :
_italic_ or *italic*In mdbg :
%italic%
In markdown :
~~strikethrough~~In mdbg :
~strikethrough~
Small changes have been made.
This is a list in mdbg :
Neutral text :
- first item
- second item
- first second item
- second second item
- third item
and an enumerated list :
1. first item
2. second item
1. first second item
2. second second item
3. third item
The indentations can be four spaces or a tabulation but each item has to be idented.
[text for link](https://www.google.com)
[text for link](https://www.google.com "title for link")
Like in Markdown.
Like Markdown, without the 2nd line.
In mdbg :
| C11 | C21 | C31 |
| C21 | C22 | C32 |
| C31 | C32 | C33 |
Whereas in Markdown :
| C11 | C21 | C31 |
| --- | --- | --- |
| C21 | C22 | C32 |
| C31 | C32 | C33 |You can't chose text alignment for every cell but you can chose it for every row by adding the command !!tab followed by the alignments.
For example one possible table would be :
!!tab r c l
| C11 | C21 | C31 |
| C21 | C22 | C32 |
| C31 | C32 | C33 |
Description :
- Command :
![TREE]! - Root :
R "text" - Node :
N "text" - Leaf :
L "text"
![TREE R "root" N "a node" L "a leaf" L "an other leaf" N "an other node" L "a leaf again !" N "a node again !" L "OneWord" L "the last leaf"]!
If you want to draw an non strictly binary tree, you can write L () for an empty leaf
Command : ![nTREE]!
![nTREE "A" -- {"B" -- {"H" -- {"N", "O"}, "I", "J"}, "C", "D", "E" -- {"K" -- "P", "L" -- "Q"}, "F", "G" -- "M"}]!
You can draw graphs with a very simple syntax (the same as nTREE syntax).
This is made possible thanks to TikZ fantastic graphs and graphdrawing packages, with some of their libraries.
Command : ![GRAPH .............!]
With a possible !!option before ![GRAPH... line.
This option will be translated to \graph[<option>]... in LaTeX.
See pgfmanual for more information about the syntax.
You can also base your graph on the example given in the section Examples
You can use text in superscript :
We live in Paris, in the 5^{th}
You can use text in subscript :
This is a normal text_{this one is subscripted}
This is how to use footnotes :
I never work ***{almost}
How to use colored texts :
I love {red}[red] and {green}[blue witten in green] !

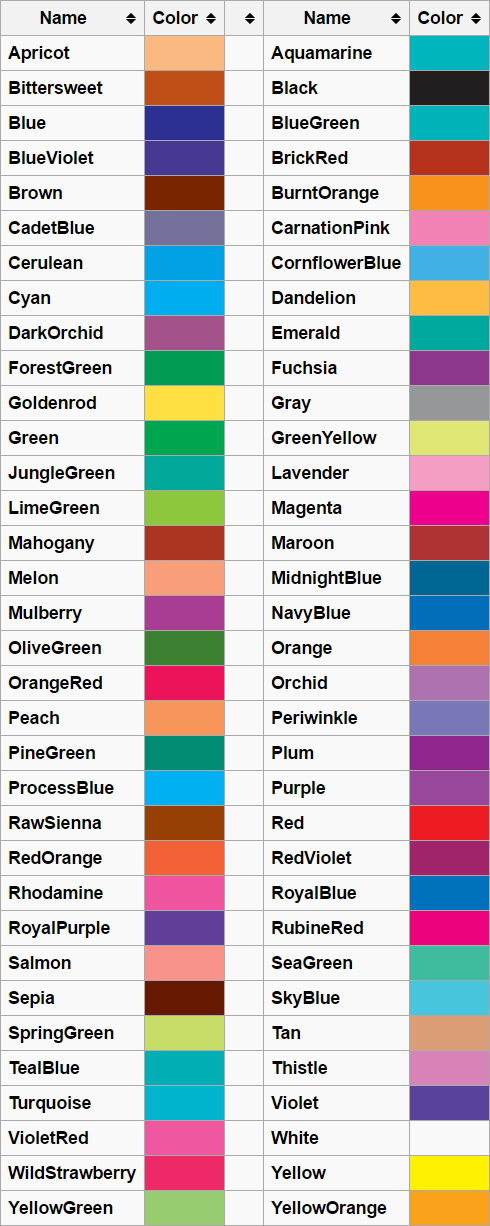

A list of all possible colors is given at the end of this readme.
You can center some text or some figure with this :
(((
...
)))
Add a ! at the begining of a line to have a \noindent before this line in the LaTeX generated file.
Add a / at the end of a line to have a line break.
The command ![TREE R 1 N 2 F 3 F 4 F 5]! produces the following result in LaTeX :

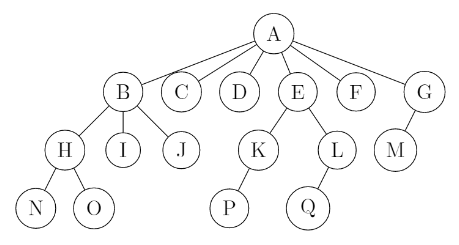

the command ![nTREE A -- {B -- {H -- {N, O}, I, J}, C, D, E -- {K -- P, L -- Q}, F, G -- M}]! produces the following result in LaTeX :

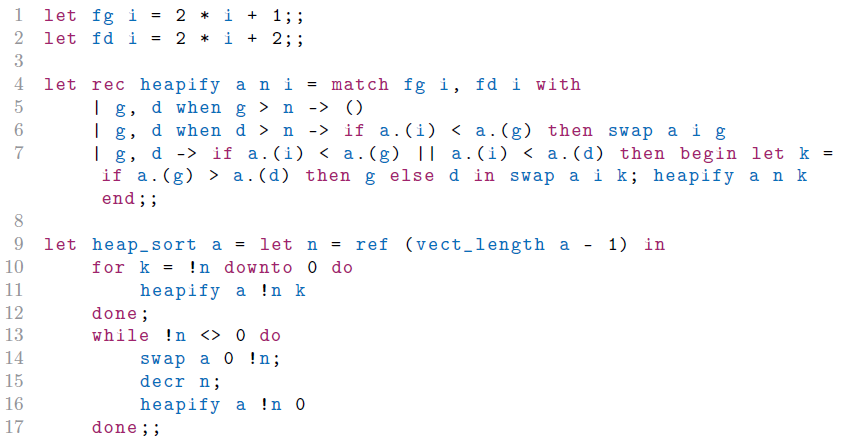

Those lines :
```ocaml
let fg i = 2 * i + 1;;
let fd i = 2 * i + 2;;
let rec heapify a n i = match fg i, fd i with
| g, d when g > n -> ()
| g, d when d > n -> if a.(i) < a.(g) then swap a i g
| g, d -> if a.(i) < a.(g) || a.(i) < a.(d) then begin let k = if a.(g) > a.(d) then g else d in swap a i k; heapify a n k end;;
let heap_sort a = let n = ref (vect_length a - 1) in
for k = !n downto 0 do
heapify a !n k
done;
while !n <> 0 do
swap a 0 !n;
decr n;
heapify a !n 0
done;;
``` Will produce this :

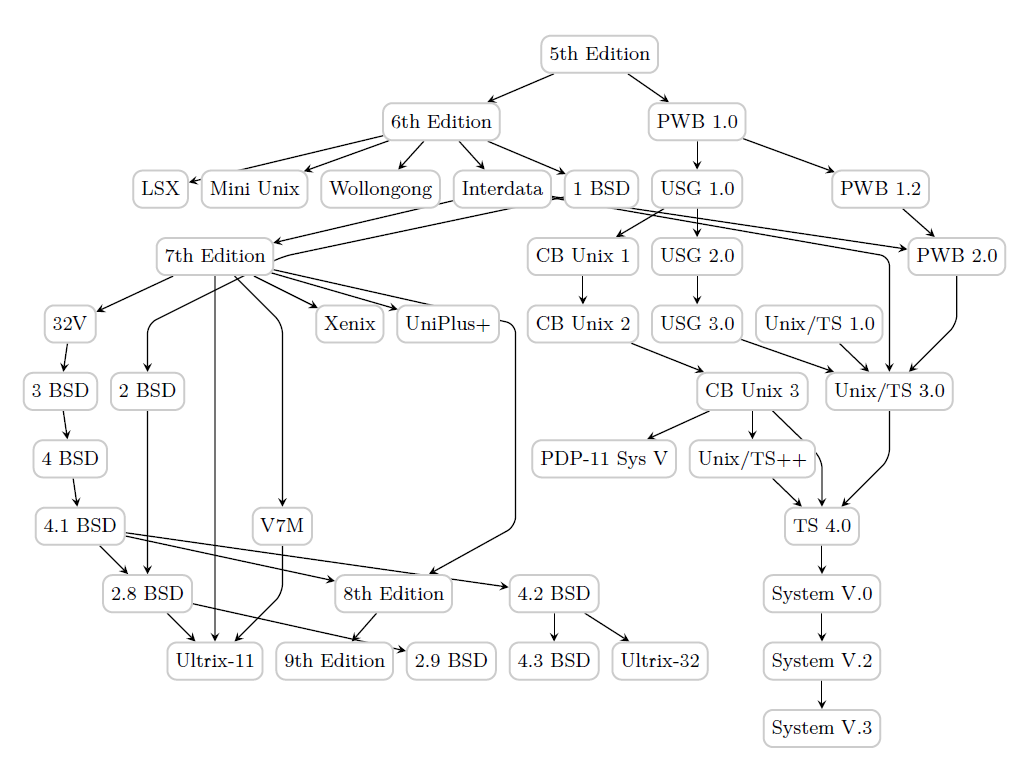

!!layered layout
![GRAPH "5th Edition" -> { "6th Edition", "PWB 1.0" };
"6th Edition" -> { "LSX", "1 BSD", "Mini Unix", "Wollongong", "Interdata" };
"Interdata" -> { "Unix/TS 3.0", "PWB 2.0", "7th Edition" };
"7th Edition" -> { "8th Edition", "32V", "V7M", "Ultrix-11", "Xenix", "UniPlus+" };
"V7M" -> "Ultrix-11";
"8th Edition" -> "9th Edition";
"1 BSD" -> "2 BSD" -> "2.8 BSD" -> { "Ultrix-11", "2.9 BSD" };
"32V" -> "3 BSD" -> "4 BSD" -> "4.1 BSD" -> { "4.2 BSD", "2.8 BSD", "8th Edition" };
"4.2 BSD" -> { "4.3 BSD", "Ultrix-32" };
"PWB 1.0" -> { "PWB 1.2" -> "PWB 2.0", "USG 1.0" -> { "CB Unix 1", "USG 2.0" }};
"CB Unix 1" -> "CB Unix 2" -> "CB Unix 3" -> { "Unix/TS++", "PDP-11 Sys V" };
{ "USG 2.0" -> "USG 3.0", "PWB 2.0", "Unix/TS 1.0" } -> "Unix/TS 3.0";
{ "Unix/TS++", "CB Unix 3", "Unix/TS 3.0" } -> "TS 4.0" -> "System V.0" -> "System V.2" -> "System V.3";
]!
Will produce this :
Here is a link of a recent and accurate version of pgf-tikz manual.
It is used for trees and graphs in Markdown BG.
